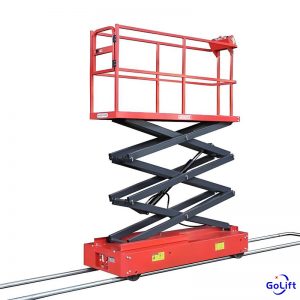

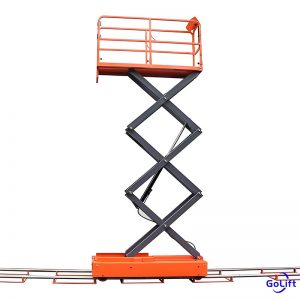

Greenhouse Use Pipe Rail Scissor Lift
Application: Pipe rail scissor lift for greenhouse tomato harvesting. 3m/4m height, 200kg load, fits 550/800mm rail gauges. Safe, efficient agricultural aerial work solution.
★ Lift capacity: 200KG
★ Platform height: 3m/ 4m
★ Working height: 5m/ 6m
★ Power source: Lead acid battery

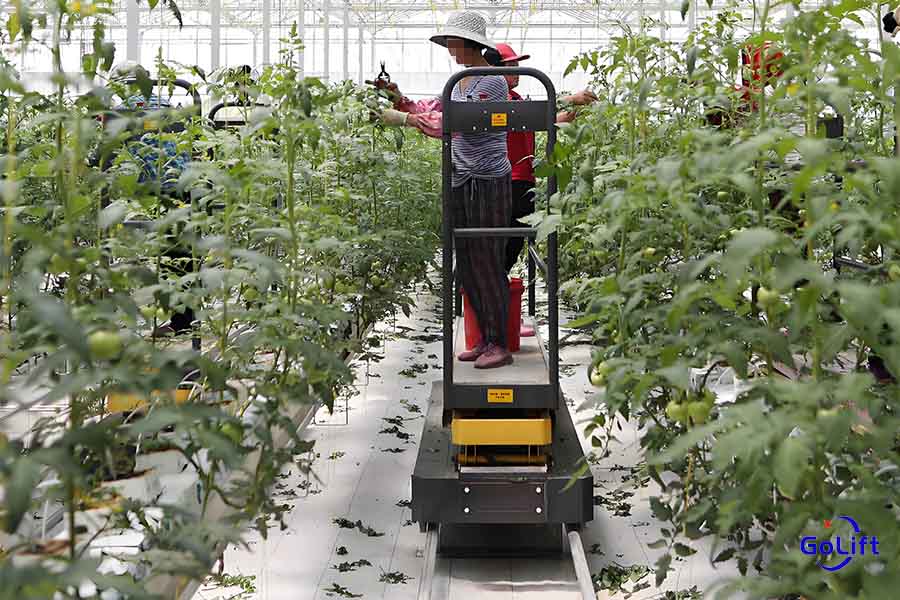

Rail-Guided Self-Propelled Scissor Lift for Greenhouse Harvesting & Maintenance
Designed exclusively for greenhouse environments, our rail-mounted self-propelled scissor lift is the ultimate solution for high-altitude tasks like tomato harvesting, pruning, and plant care. Built to run on standard greenhouse rails (550mm or 800mm gauge), this compact aerial work platform delivers smooth, precise movement along crop rows, with a 200kg load capacity and 3m/4m platform heights to suit your operational needs. It eliminates the strain of ladders and reduces crop damage, boosting productivity while keeping workers safe.
Key Features
Greenhouse-Specific Rail Compatibility: Fits standard 550mm or 800mm greenhouse rail gauges, with custom spacing options available to match your facility’s layout.
Compact & Low-Profile Design: Slim footprint navigates narrow crop rows without damaging plants, ideal for commercial tomato and vegetable greenhouses.
Adjustable Working Heights: Choose between 3m or 4m platform heights to accommodate different crop trellis systems and facility designs.
200kg Rated Load Capacity: Supports 1 operator plus tools, ensuring stable performance during extended harvesting or maintenance tasks.
Electric Self-Propelled Drive: Battery-powered operation with zero emissions and low noise, safe for use in enclosed greenhouse environments.
Precision & Safety Controls: Smooth proportional lifting and movement, emergency stop functions, and anti-tilt protection for reliable, injury-free operation.
Easy Maneuverability: Designed for straight-line travel along rails, with intuitive controls that require minimal operator training.
| Model Number | GSJT0.2-3 | GSJT0.2-4 | GSJT0.2-3W | GSJT0.2-4W | |
|---|---|---|---|---|---|
| Lifting capacity | kg | 200 | 150 | 200 | 150 |
| Maximum working height | mm | 5000 | 6000 | 5000 | 6000 |
| Maximum platform height | mm | 3000 | 4000 | 3000 | 4000 |
| Minimum platform height | mm | 600 | 705 | 600 | 705 |
| Whole length | mm | 1935 | 1935 | 1935 | 1935 |
| Whole width | mm | 770 | 770 | 1020 | 1020 |
| Whole width | mm | 1655 | 1760 | 1655 | 1760 |
| Platform size | mm | 1910x510 | 1910x510 | 1910x650 | 1910x650 |
| Minimum ground clearance | mm | 70 | 70 | 70 | 70 |
| Pipe rails spacing | mm | 550 | 550 | 800 | 800 |
| Pipe railsdDiameter / thickness | mm | 48/2.5~4.0 | 48/2.5~4.0 | 48/2.5~4.0 | 48/2.5~4.0 |
| Driving Motor | v/kw | 24/0.5 | 24/0.5 | 24/0.5 | 24/0.5 |
| Lifting Motor | v/kw | 24/2.2 | 24/2.2 | 24/2.2 | 24/2.2 |
| Running speed | km/h | 0~3.5 | 0~3.5 | 0~3.5 | 0~3.5 |
| Rising/falling speed | sec | 18/20 | 18/20 | 18/20 | 18/20 |
| Lead Acid Battery | V/Ah | 2×12/80 | 2×12/80 | 2×12/108 | 2×12/108 |
| Charger | V/A | 24/15 | 24/15 | 24/15 | 24/15 |
| Wheel | mm | φ200x50 | φ200x50 | φ200x50 | φ200x50 |
| Overall Net Weight | kg | 520 | 590 | 590 | 660 |
