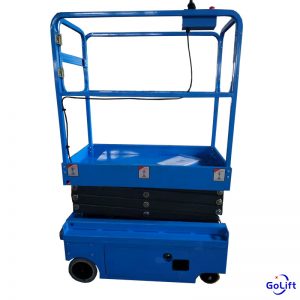

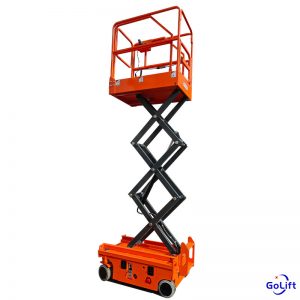

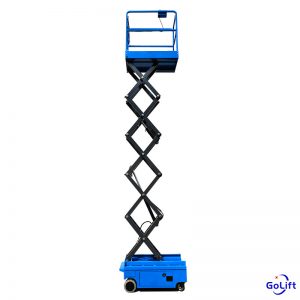

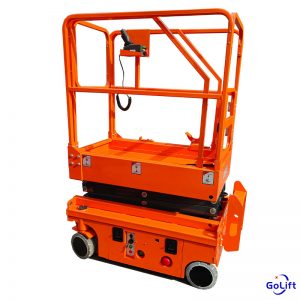

Mini Self Propelled Scissor Lifts
Application: Compact self-propelled scissor lift is designed to excel in confined or narrow spaces such as narrow doorways, corridors, or between obstacles, offering a practical solution for elevated tasks where larger machinery cannot operate, ideal for indoor settings such as offices, shopping malls, residential buildings, and industrial facilities with limited clearance.
★ Lift capacity: 300KG
★ Platform height: 3m/ 3.9m/ 4.8m
★ Working height: 5m/ 5.9m/ 6.8m
★ Power source: Lead acid battery
Mini Compact Self-Propelled Scissor Lift – Ideal for Low-Level Aerial Work in Tight Spaces.
Our compact, self-propelled mini scissor lift is designed for working at heights inaccessible to conventional aerial work platforms. Thanks to its compact size and zero turning radius, this small electric platform maneuvers effortlessly through narrow aisles, passageways, and confined indoor spaces, for example in shops, offices, hotels, and small warehouses.
Equipped with essential safety features such as an emergency stop switch, overload protection, and a tip-over alarm, this compact scissor lift ensures reliable performance even in the tightest spaces. With working heights ranging from 3 to 6 meters, it is ideal for tasks such as roof maintenance, changing light bulbs, inventory management, and building cleaning. The lightweight and robust system eliminates the need for cumbersome scaffolding and ladders, thus increasing efficiency for smaller jobs at height.
| Model No. | GTJZ5.0 | GTJZ5.9 | GTJZ6.8 | GTJZ5.0H | GTJZ5.9H | GTJZ6.8H |
|---|---|---|---|---|---|---|
| Lift capacity | 300 kg | 300 kg | 300 kg | 300 kg | 300 kg | 300 kg |
| Max. working height | 5.0 m | 5.9 m | 6.8 m | 5.0 m | 5.9 m | 6.8 m |
| Max. platform height | 3.0 m | 3.9 m | 4.8 m | 3.0 m | 3.9 m | 4.8 m |
| Overall size mm | 1180x760x 1830 | 1180x760x 1930 | 1180x760x 1990 | 1340x760x 1830 | 1340x760x 1930 | 1340x760x 1990 |
| Platform size mm | 1170x600 | 1170x600 | 1170x600 | 1170x600 | 1170x600 | 1170x600 |
| Battery V/Ah | 2×12V/ 60Ah | 2×12V/ 60Ah | 2×12V/ 60Ah | 2×12V/ 80Ah | 2×12V/ 80Ah | 2×12V/ 80Ah |
| Charger V/A | 24V /10A | 24V /10A | 24V /10A | 24V /10A | 24V /10A | 24V /10A |
| Min. turn radius mm | 1200 | 1200 | 1200 | 1400 | 1400 | 1400 |
| Driving Motor v/kw | 2×24/0.4 | 2×24/0.4 | 2×24/0.4 | 2×24/0.4 | 2×24/0.4 | 2×24/0.4 |
| Lifting Motor v/kw | 24/0.8 | 24/0.8 | 24/0.8 | 24/1.2 | 24/1.2 | 24/1.2 |
| Drive speed km/h | 0.8 - 4 | 0.8 - 4 | 0.8 - 4 | 0.8 - 4 | 0.8 - 4 | 0.8 - 4 |
| Max. climbing ability % | 10 -15 | 10 -15 | 10 -15 | 10 -15 | 10 -15 | 10 -15 |
| Max. working allowable angle | 2° | 2° | 2° | 2° | 2° | 2° |
| Driving Wheel mm | φ230x80 | φ230x80 | φ230x80 | φ230x80 | φ230x80 | φ230x80 |
| Front Wheel mm | φ150x60 | φ150x60 | φ150x60 | φ230x80 | φ230x80 | φ230x80 |
| Wheelbase mm | 990 | 990 | 990 | 1010 | 1010 | 1010 |
| Ground clearance mm | 60 | 60 | 60 | 60 | 60 | 60 |
| Overall Net Weight kg | 490 | 600 | 760 | 650 | 700 | 930 |
