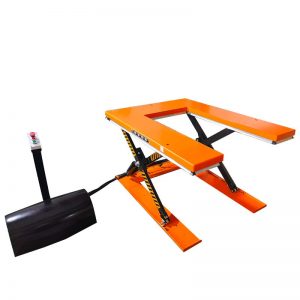

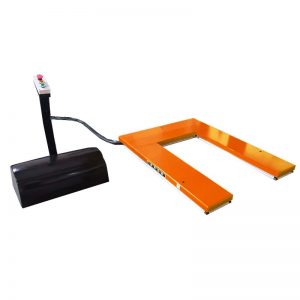

U Shape Pallet Lift Table
Application: loading, unloading, and vertical lifting of palletized goods
★ Lift capacity:600kg/1000kg/1500kg
★ Lift height:85mm – 860mm,
★ Platform size:Various for different standard models
★Power source: AC electric
110V/220V/230V/380V/460V etc.
50Hz / 60Hz
★ Options:With moving wheels, platform railing, safety skirts, platform rollers, pedals, wireless remote control, infrared control etc.
The U-shaped fixed scissor lift table is engineered for seamless pallet handling in warehouses, factories, and logistics hubs. Its specialized U-design allows forklifts and pallet jacks to directly access the platform, eliminating manual transfer and streamlining loading, unloading, and vertical lifting of palletized goods. Powered by a reliable hydraulic system, it delivers smooth, stable elevation with robust load capacity, ensuring safe, efficient material handling while optimizing workflow and reducing labor intensity. Ideal for dock operations, production lines, and storage facilities, it combines durability, safety, and ergonomic design to meet heavy-duty industrial lifting needs.
| Model No. | ELT600U | ELT1000U | ELT1500U |
|---|---|---|---|
| Load capacity /kg | 600KG | 1000KG | 1500KG |
| Platform size /mm | 1450x985 | 1450x1140 | 1600x1180 |
| Closed height /mm | 85 | 85 | 85 |
| Full height /mm | 860 | 860 | 860 |
| Lifting time /s | 25-35 | 25-35 | 30-40 |
| Weight /kg | 207 | 280 | 380 |
