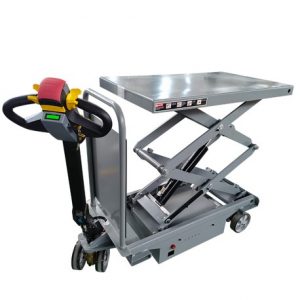

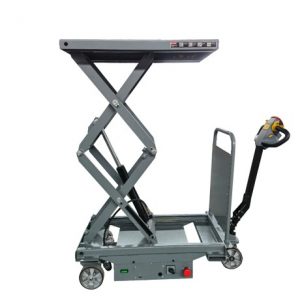

Battery Operated Scissor Lift Table
Application: Motorized moving and lifting material/cargo/goods for industrial use
Lift capacity: 500kg/800kg
Lift height: 1000mm / 1700mm
Platform size: 1020X610
Power source: lead acid battery
This fully electric mobile scissor lift is powered by a reliable battery system. It enablesmotorized lifting and effortless electric movement for material handling in warehouses,factories, and workshops. Its intuitive control panel ensures smooth and precisemaneuvering as well as stable vertical lifting, eliminating the need for manually pushingand carrying heavy loads. Thanks to its ergonomic design and robust construction, itsimplifies goods transport, assembly line work, and inventory management, optimizingproductivity and reducing operator fatigue. A durable and efficient material handlingsolution for modern industry.
| Model No. | FLT501 | FLT502 | FLT801 | FLT802 |
|---|---|---|---|---|
| Load capacity (kg) | 500 | 500 | 800 | 800 |
| Platform size (mm) | 1020X610 | 1020X610 | 1020X610 | 1020X610 |
| Min./Max. height (mm) | 470/1000 | 470/1700 | 470/1700 | 470/1000 |
| Drive wheel size (mm) | 180/50 | 180/50 | 180/50 | 180/50 |
| steering wheel size (mm) | 180/50 | 180/50 | 180/50 | 180/50 |
| Control volts (V) | 24 | 24 | 24 | 24 |
| Battery (AH) | 65Ah*2 | 65Ah*2 | 65Ah*2 | 65Ah*2 |
| Battery charger (V/A) | 24v15A | 24v15A | 24v15A | 24v15A |
| Net weight (KG) | 200 | 230 | 250 | 200 |
