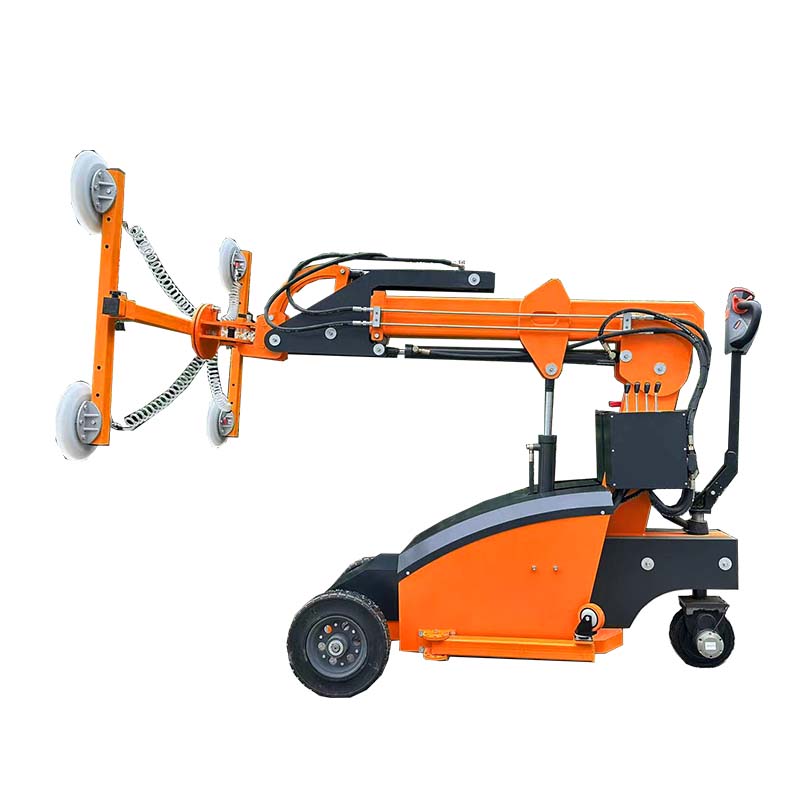

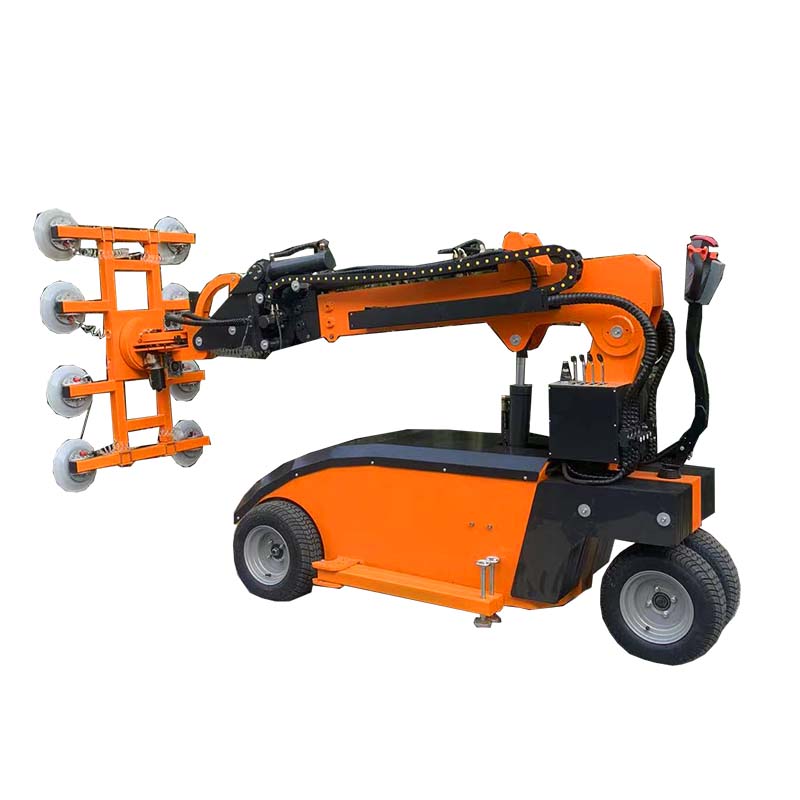

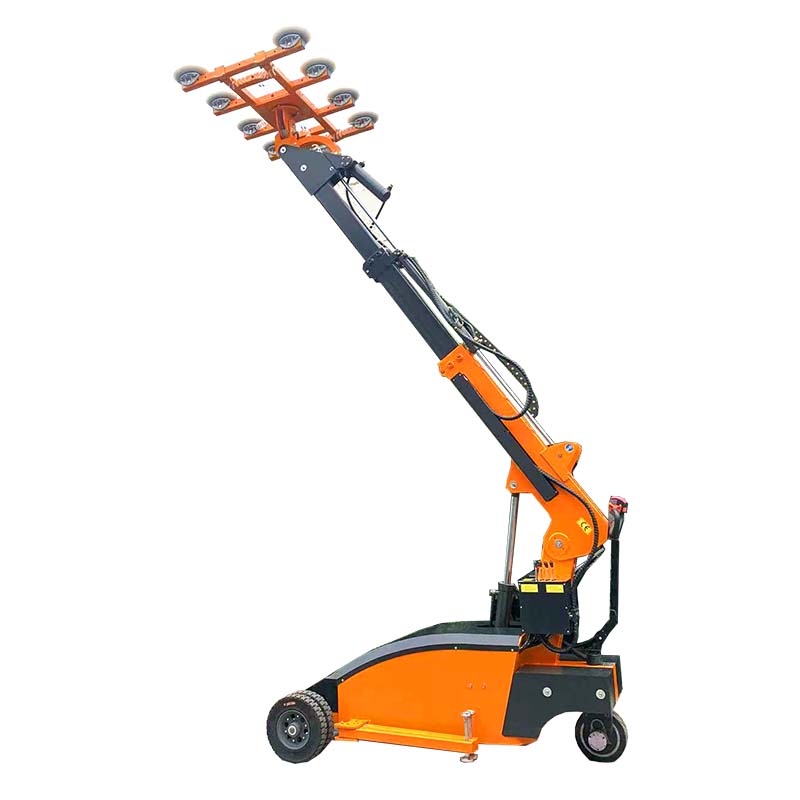

Vacuum Glass Installation Crane
Vacuum Glass Installation Crane – Heavy-Duty Glass Installation & Transport Solution
Application: Various types of glass, metal, marble, solar panels etc. moving, lifting and installing
★ Max. load capacity: 300kg/ 400kg/ 500kg/ 600kg/800kg
★ Lift height:3.5m/3.7m/5m
★ Power source: DC battery po
The Electric hydraulic vacuum suction cups lifters are professionally designed for the safeand precise handling of windows, doors, glass partitions, solar panels, and other flat, smoothmaterials. For rough surfaces such as concrete blocks or steel sheets, we offer sponge suctioncups as an alternative.
Thanks to a reliable dual-circuit suction system, this device offers double protection: even if onecircuit fails, the other ensures stable suction, preventing falls and damage.
Equipped with a battery, high-adhesion suction cups, a powerful vacuum pump, an electric motor,
a braking system, and ergonomic handles for easy pushing, the suction lifter guarantees a secure,reliable, and non-slip grip on smooth surfaces, reducing the risk of breakage and fatigue, ideal forconstruction sites, glass processing plants, and warehouses.
To increase the safety and productivity of your projects with our reliable glass handlingequipment, welcome to use our vacuum glass lifters. Please don’t hesitate to contact us for more information and to find the right suction lifter for your needs.
| Model No. | SC-R300 | SC-R400 | SC-R500 | SC-R600 | SC-R800 |
|---|---|---|---|---|---|
| Load Capacity | 300kg retract / 150kg extend | 400kg retract / 200kg extend | 500kg retract / 250kg extend | 600kg retract / 300kg extend | 800kg retract / 400kg/200kg extend |
| Max. lift height | 3500 mm | 3500 mm | 3700 mm | 3700 mm | 5000 mm |
| Lead acid battery | 2x12V/80AH | 2x12V/100AH | 2x12V/120AH | 2x12V/120AH | 2x12V/120AH |
| Drive motor | 24V/1200W | 24V/600W | 24V/900W | 24V/900W | 24V/1200W |
| Lift motor | 24V/2000W/5L | 24V/2000W/5L | 24V/2000W/5L | 24V/2000W/5L | 24V/2000W/12L |
| Chassis size | 2660*810mm | 2660*810mm | 2800*810mm | 2800*810mm | 2800*810mm |
| Driving wheel | Ø250x80mm | Ø250x80mm | Ø300x100mm | Ø300x100mm | Ø300x125mm |
| Net/ gross weight | 1100/1150kg | 1280/1330kg | 1300/1350kg | 1400/1450kg | 1600/1650kg |
| Packing Size | 2560 x 1030 x 1700mm | 2560 x 1030 x 1700mm | 2580 x 1050 x 1700m | 2580 x 1050 x 1700m | 3000 x 1250 x 2300mm |
