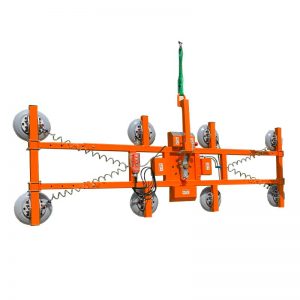

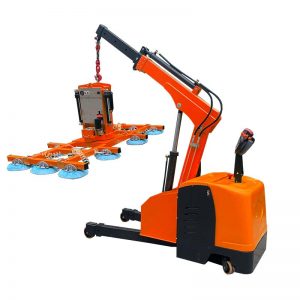

H Shape Vacuum Suction Cups
Large-Size Glass Handling Equipment
Application: glass steel plates and marble stones etc. moving, lifting and installing
★ Lift capacity: 800kg/1000kg/1200kg/1500kg/ 2000kg/2500kg/3000kg/5000kg
★ Control Mode: press buttons on the control panel, and optional wireless remote control
★ Power source: DC battery power
Our heavy duty suction cup glass lifter is designed for the safe and efficient lifting and installation of large panes of glass in the construction, glassmaking, and manufacturing sectors. Equipped with numerous industrial-grade suction cups, this robust lifter provides powerful and reliable clamping force for large panes, reducing labor strain and the risk of breakage.
Thanks to its durable steel frame and high-performance vacuum system, it supports heavy loads while allowing for smooth 90° tilting and precise positioning. The modular suction cup configuration accommodates various glass sizes and ensures secure fastening without damaging the surface. Equipped with alarms and safety mechanisms, it guarantees stable operation even outdoors.
Ideal for curtain wall installation, glass processing lines, and warehouse logistics, this suction cup glass lifter increases productivity, minimizes workplace accidents, and complies with international safety standards.
| Model No. | Load capacity kg | Rotating | Tilting | vacuum system |
|---|---|---|---|---|
| SC-MH800 | 800 | 360° manually | 90° manually | Single-circuit |
| SC-EH800 | 800 | 360° electrically | 90° electrically | Dual-circuit |
| SC-MH1000 | 1000 | 360° manually | 90° manually | Single-circuit |
| SC-EH1000 | 1000 | 360° electrically | 90° electrically | Dual-circuit |
| SC-MH1200 | 1200 | 360° manually | 90° manually | Single-circuit |
| SC-EH1200 | 1200 | 360° electrically | 90° electrically | Dual-circuit |
| SC-MH1500 | 1500 | 360° manually | 90° manually | Single-circuit |
| SC-EH1500 | 1500 | 360° electrically | 90° electrically | Dual-circuit |
| SC-MH2000 | 2000 | 360° manually | 90° manually | Single-circuit |
| SC-EH2000 | 2000 | 360° electrically | 90° electrically | Dual-circuit |
