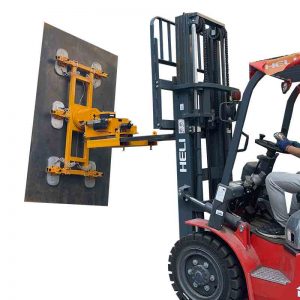

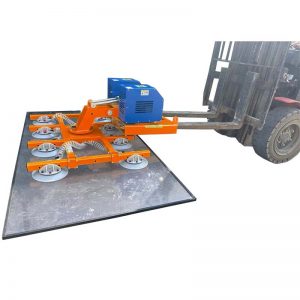

Forklift Use Vacuum Suction Cups
Remote Control, Electric Tilt & Rotation
Application: glass steel plates and marble stones etc. moving, lifting and installing
★ Lift capacity: 300kg/400kg/500kg/600kg/800kg/1000kg/1200kg
★ Control Mode:
wireless remote control Power source: DC battery power
The suction cup lifting system for forklifts transforms your standard forklift into a powerful glass handling machine. It enables the precise lifting, installation, and transport of large panes of glass, windows, stone slabs, and even steel sheets, both in factories and on construction sites.
With a lifting capacity of 300 to 1,200 kg, high-adhesion suction cups, and an intelligent vacuum system, this forklift attachment effortlessly handles the most demanding tasks and ensures secure picking and placing on both smooth, flat surfaces like glass and rough surfaces like concrete and steel sheets.
Key features include flipping 90° and 360° electric rotation, 180° tilting, lateral movement, and forward movement. All functions are wirelessly controlled via an industrial remote control, allowing the operator to maintain complete control remotely. This system is ideal for glassworks, curtain wall projects, facade construction, and handling heavy steel sheets in warehouses or on civil engineering sites. It improves safety, reduces manual labor, and increases efficiency on construction sites.
| Model No. | SC-F300 | SC-F400 | SC-F500 | SC-F600 | SC-F800 | SC-F1000 |
|---|---|---|---|---|---|---|
| Load Capacity | 300kg | 400kg | 500kg | 600kg | 800kg | 1000kg |
| Rubber Suction Cup | Φ250X4pcs | Φ300X4pcs | Φ300X6pcs | Φ300X6pcs | Φ300X8pcs | Φ300X10pcs |
| Lead Acid Battery | 12V/20Ah, 2pcs | 12V/20Ah, 2pcs | 12V/20Ah, 2pcs | 12V/20Ah, 2pcs | 12V/20Ah, 2pcs | 12V/20Ah, 2pcs |
| Battery Charger | 24V/6A | 24V/6A | 24V/6A | 24V/6A | 24V/6A | 24V/6A |
| Pad Frame width | 1090 mm | 1140 mm | 1140 mm | 1140 mm | 1140 mm | 1140 mm |
| Adjustable Frame length | 1510 mm | 1560 mm | 1600-2320 mm | 1600-2320 mm | 1600-2320 mm | 1600-2320 mm |
| Packing Size (mm) | 1820x1040x730 | 1820x1040x730 | 1820x1040x730 | 1820x1040x730 | 1820x1040x730 | 1820x1040x730 |
| Weight (kg) | 350 | 350 | 355 | 365 | 370 | 380 |
