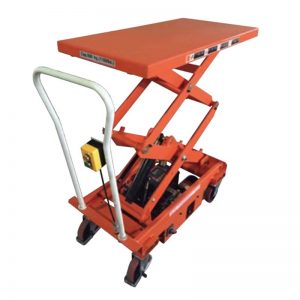

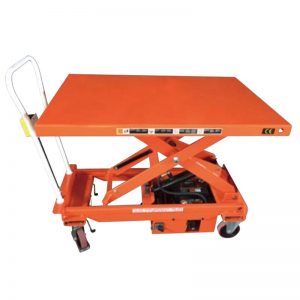

Manual Electric Scissor Lift Trolley
Application: moving and lifting material/cargo/goods for industrial use
Lift capacity:
150kg /250kg/300kg/500kg/750kg/800kg/1000kg
Lift height:Various from 750mm to 1600mm
Platform size:
Various for different models
Power source:
Standard manually or battery powered for lifting, all move manually
This lightweight mobile scissor lift table offers two operating modes: smooth manual lifting andbattery-powered electric lifting. This makes it ideal for moving goods in workshops, warehouses,and retail environments. Its maneuverability thanks to its universal wheels and compact designallows for easy positioning of goods at various heights. Its affordable price, ease of use, androbust safety features optimize daily lifting operations and reduce labor costs. A versatile and
economical solution for moving small quantities of goods and for assembly lines.
| Model No. | Lift Capacity (kg) | Platform size (mm) | Min. platform height (mm) | Max. platform height(mm) | Lifting Power | Weight (kg) |
|---|---|---|---|---|---|---|
| ELT151 | 150 | 700*450 | 265 | 755 | manually | 41 |
| ELT251 | 250 | 830*500 | 330 | 910 | manually | 78 |
| ELT501 | 500 | 1010*520 | 435 | 1000 | manually | 112 |
| ELT751 | 750 | 1010*520 | 442 | 1000 | manually | 112 |
| ELT101 | 1000 | 1010*520 | 445 | 950 | manually | 130 |
| ELT102 | 1000 | 1200*800 | 425 | 1225 | manually | 163 |
| ELT152 | 150 | 830*500 | 435 | 1430 | manually | 90 |
| ELT302 | 300 | 1010*520 | 435 | 1585 | manually | 138 |
| ELT502 | 500 | 1010*520 | 440 | 1575 | manually | 156 |
| ELT802 | 800 | 1010*520 | 470 | 1410 | manually | 160 |
| ELT503 | 500 | 1525*620 | 400 | 1000 | manually | 175 |
| ELT504 | 500 | 1200*800 | 370 | 1190 | manually | 160 |
| ELT30E | 300 | 1010*520 | 450 | 950 | by battery | 140 |
| ELT50E | 500 | 1010*520 | 450 | 950 | by battery | 148 |
| ELT75E | 750 | 1010*520 | 450 | 950 | by battery | 154 |
| ELT100E | 1000 | 1010*520 | 480 | 950 | by battery | 169 |
| ELT30D | 300 | 1010*520 | 495 | 1600 | by battery | 183 |
| ELT50D | 500 | 1010*520 | 495 | 1618 | by battery | 198 |
| ELT80D | 800 | 1010*520 | 510 | 1460 | by battery | 208 |
| ELT100A | 1000 | 1010*520 | 510 | 1450 | by battery | 230 |
| ELT500A | 500 | 1525*620 | 440 | 1575 | by battery | 215 |
| ELT500B | 500 | 1200*800 | 430 | 1220 | by battery | 220 |
| ELT100B | 1000 | 1200*800 | 430 | 1220 | by battery | 225 |
