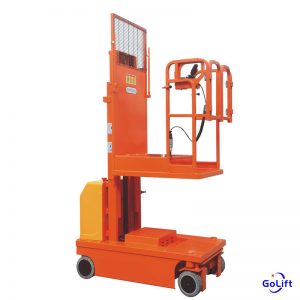

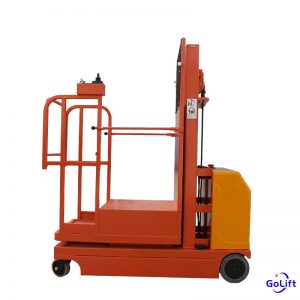

Full Electric Self Propelled Order Picker
Application: The full electric self-propelled order picker integrates electric driving and electric lifting, compact design with small turning radius, ideal for warehouse rack picking, supermarkets and factory overhead goods handling, greatly reducing manual pushing workload.
★ Lift capacity: 300KG
★ Platform height: 2.7m/ 3.3m/4m/ 4.5m
★ Power source: DC battery power
The self-propelled order picker is battery powered to move independently around the warehouse. It is equipped with powerful electric motors that drive the wheels, providing smooth and precise movement.
Compared with semi-electric models, it saves more labor and improves working efficiency for frequent high-level material handling. It supports 15–20% grade climbing for flexible movement in warehouses, supermarkets and factory workshops, compact structure with small turning radius allows easy operation in narrow aisles too. The order picker load capacity is 300kg, can lift up to 2.7m/ 3.3m/4m/ 4.5m, an essential tool for modern warehousing and material handling operations.
Functional features:
Buzzer
Hour meter
Charger indicator
Forklift pockets
Maintenance free battery
Automatic braking system
Manual emergency lower system
Emergency stop
| Model Number | FSEP3-2.7 | FSEP3-3.3 | FSEP3-4.0 | FSEP3-4.5 |
|---|---|---|---|---|
| Max. Platform Height(mm) | 2700 | 3300 | 4000 | 4500 |
| Max. Machine Height(mm) | 4020 | 4900 | 5310 | 6000 |
| Ground Clearance(mm) | 40 | 40 | 40 | 40 |
| Lifting Capacity(kg) | 300 | 300 | 300 | 300 |
| Platform Size(mm) | 600×700 | 600×700 | 600×700 | 600×700 |
| Min. Turning Radius(mm) | 1600 | 1600 | 1600 | 1600 |
| Max. Drive Speed (Platform Stowed)(km/h) | 4 | 4 | 4 | 4 |
| Max. Drive Speed (Platform Elevated)(km/h) | 1.6 | 1.6 | 1.6 | 1.6 |
| Max. Climbing Capacity(%) | 15-20 | 15-20 | 15-20 | 15-20 |
| Driving Wheel Size(mm) | Φ230×80 | Φ230×80 | Φ230×80 | Φ230×80 |
| Caster Size(mm) | Φ150×40 | Φ150×40 | Φ150×40 | Φ150×40 |
| Driving Motor(w/kw) | 2×24/0.4 | 2×24/0.4 | 2×24/0.4 | 2×24/0.4 |
| Lifting Motor(v/kw) | 2×12/1.6 | 2×12/1.6 | 2×12/1.6 | 2×12/1.6 |
| Aneroid Battery(v/Ah) | 2×12/100 | 2×12/100 | 2×12/100 | 2×12/100 |
| Charger(v/A) | 24/15 | 24/15 | 24/15 | 24/15 |
| Overall Length(mm) | 1620 | 1620 | 1620 | 1620 |
| Overall Width(mm) | 760 | 760 | 760 | 760 |
| Overall Height(mm) | 1830 | 2130 | 1840 | 2000 |
| Overall Net Weight(kg) | 430 | 450 | 660 | 680 |
