Pneumatic Vacuum Suction Cups
Application: Ideal for various material like glass, metal sheet, woodworking plates lifting and moving in the workflow of loading/unloading CNC machines, cut-to-size lines, and assembly stations etc.
★ Lift capacity: 100kg/200kg/300kg/400kg/ 500kg
★ Control Mode: press buttons on the control panel
★ Power source: Powered by compressed air

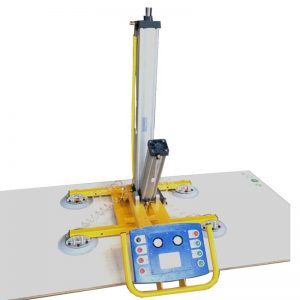

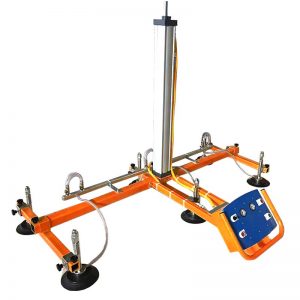

Our pneumatic suction cups lifter is designed for the safe, efficient, and damage-free lifting of wood, metal, glass, and composite panels in workshops and production lines.
The load capacity is various from 100kg to 500kg.

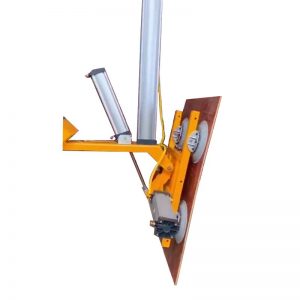

The performances include lifting up, tilting and rotating.
Powered by compressed air, this pneumatic lifter requires no electrical connection, ensuring reliable operation even in environments with limited power. The vertical pneumatic cylinder provides smooth and precise lifting and lowering with minimal operator effort, significantly reducing fatigue and the risk of workplace injury.
Typical Applications:
1. Loading/unloading CNC machines
2. Feeding cut-to-size production lines
3. Material handling at assembly stations
4. Lifting wood, metal, glass, and composite panels
5. Workshop and factory floor material transfer
| Model No. | Load capacity kg | Suction cups mm | Suction frame size mm | Travel height mm | Rotating | Tilting | Net/Gross weight kg | Package size mm |
|---|---|---|---|---|---|---|---|---|
| SC-P101 | 100 | φ200 x 4pcs | 1500x600 | 1000 | / | / | 80 / 100 | 1550x620x480 |
| SC-P201 | 200 | φ200 x 6pcs | 1500x600 | 1000 | / | / | 90 / 110 | 1550x620x480 |
| SC-P301 | 300 | φ200 x 6pcs | 1500x600 | 1000 | / | / | 100 / 120 | 1550x620x480 |
| SC-P501 | 500 | φ210 x 6pcs | 2000x800 | 1000 | / | / | 140 / 160 | 2050x400x620 |
| SC-P202 | 200 | φ300 x 2pcs | 1000 | Electrically | Electrically | |||
| SC-P302 | 300 | φ250 x 4pcs | 1000 | Electrically | Electrically | |||
| SC-P402 | 400 | φ300 x 4pcs | 1000 | Electrically | Electrically | |||
| SC-P502 | 500 | φ300 x 6pcs | 1000 | Electrically | Electrically |
