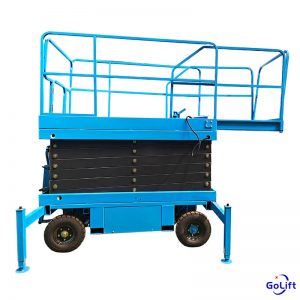

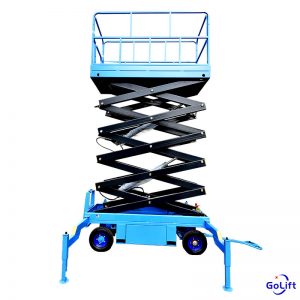

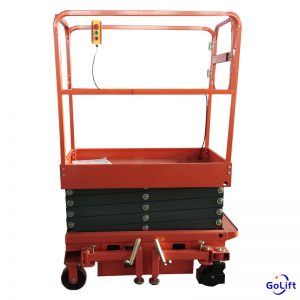

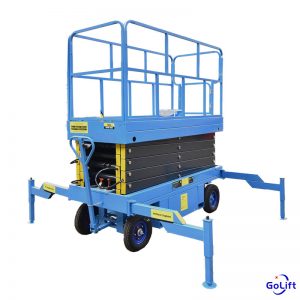

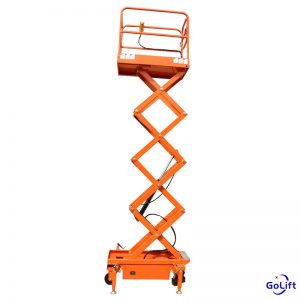

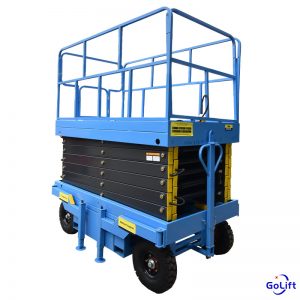

Push Around Mobile Scissor Lift
Application: Hydraulic electric mobile scissor lift with hydraulic lifting, easy to tow and move. Ideal for construction, warehouse maintenance, and outdoor aerial work.
★ Lift capacity: 300KG/500kg/1000kg/1500kg/2000kg
★ Platform height: 3m/ 3.9m/ 4.8m/6m/7m/8m/9m/10m/11m/12m/14m/16m/18m
★ Working height: 5m/ 5.9m/ 6.8m/8m/9m/10m/11m/12m/13m/14m/16m/18m/20m
★ Power source: Standard with AC electric power lifting, manually pushing or towed moving
Optional with DC battery power for lifting and moving
This manually operated aerial platform scissor lift offers a mobile, cost-effective solution for working at height from 4m to 20m. Equipped with large wheels, handles, and stabilizers, it can be easily moved between job sites. Serving as a budget-friendly alternative to self-propelled models, it is ideal for small businesses, maintenance crews, or occasional users who do not require frequent relocation.
Thanks to its reliable hydraulic lifting system, it ensures smooth, stable operation, perfect for construction sites, warehouse maintenance, building decoration, streetlamp repair, and event setup. The spacious safety platform, complete with guardrails, ensures a secure working environment for operators and their tools.
With lifting capacities of 500kg to 2,000 kg and a spacious platform, these scissor lifts are suited for a variety of demanding jobs: assembling heavy components, repairing industrial equipment at height, loading and unloading heavy goods in elevated storage areas, maintaining large machinery, and much more.
This mobile, economical scissor lift is the ideal solution for companies seeking flexible operation and access to various elevated areas without the high costs associated with self-propelled models.
| Model No. | Load capacity kg | Platform size mm | Working height m | Platform lift height m | Overall machine size mm | Net weight kg |
|---|---|---|---|---|---|---|
| SJY0305 | 300 | 1170x600 | 5 | 3 | 1300x740x1650 | 360 |
| SJY0306 | 300 | 1170x600 | 5.9 | 3.9 | 1300x740x1750 | 420 |
| SJY0307 | 300 | 1170x600 | 6.8 | 4.8 | 1300x740x1880 | 475 |
| SJY0508 | 500 | 2100x830 | 8 | 6 | 2250x950x1200 | 880 |
| SJY0509 | 500 | 2100x830 | 8.8 | 6.8 | 2250x950x1200 | 970 |
| SJY0510 | 500 | 2100x930 | 10 | 8 | 2250x1060x1380 | 1050 |
| SJY0511 | 500 | 2100x930 | 11 | 9 | 2250x1060x1500 | 1165 |
| SJY0512 | 500 | 2100x1230 | 12 | 10 | 2250x1350x1530 | 1360 |
| SJY0313 | 300 | 2100x1230 | 13 | 11 | 2250x1350x1650 | 1400 |
| SJY0514 | 500 | 2550x1530 | 14 | 12 | 2796x1670x1750 | 2260 |
| SJY0516 | 500 | 2812x1530 | 16 | 14 | 3067x1730x1810 | 2486 |
| SJY0318 | 300 | 2812x1600 | 18 | 16 | 3067x1810x2080 | 3063 |
| SJY0320 | 300 | 3070x1600 | 20 | 18 | 3321x1810x2080 | 3900 |
| SJY1006 | 1000 | 2100x1200 | 6 | 4 | 2250x1350x1180 | 1250 |
| SJY1008 | 1000 | 2100x1200 | 8 | 6 | 2250x1350x1300 | 1400 |
| SJY1010 | 1000 | 2100x1200 | 10 | 8 | 2250x1350x1420 | 1585 |
| SJY1012 | 1000 | 2100x1200 | 12 | 10 | 2250x1350x1530 | 1700 |
| SJY1014 | 1000 | 2550x1530 | 14 | 12 | 2796x1700x1780 | 2560 |
| SJY1016 | 1000 | 2812x1600 | 16 | 14 | 3067x1810x1900 | 3230 |
| SJY1508 | 1500 | 2100x1530 | 8 | 6 | 2250x1750x1530 | 1780 |
| SJY1510 | 1500 | 2100x1530 | 10 | 8 | 2250x1750x1690 | 2070 |
| SJY1512 | 1500 | 2100x1500 | 12 | 10 | 2250x1750x1850 | 2250 |
| SJY1514 | 1500 | 2600x1500 | 14 | 12 | 3000x1900x2300 | 3500 |
| SJY1516 | 1500 | 3200x1600 | 16 | 14 | 3500x2000x2200 | 5000 |
| SJY2008 | 2000 | 2100x1530 | 8 | 6 | 2250x1750x1530 | 1780 |
| SJY2010 | 2000 | 2100x1530 | 10 | 8 | 2250x1750x1690 | 2070 |
| SJY2012 | 2000 | 2100x1530 | 12 | 10 | 2250x1750x1850 | 2250 |
| SJY2014 | 2000 | 2600x1500 | 14 | 12 | 3000x1900x2300 | 4500 |
| SJY2016 | 2000 | 3200x1600 | 16 | 14 | 3500x2000x2500 | 5500 |
