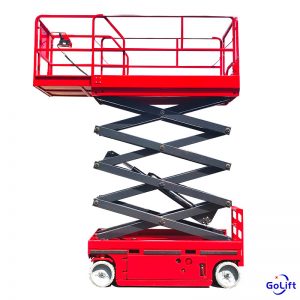

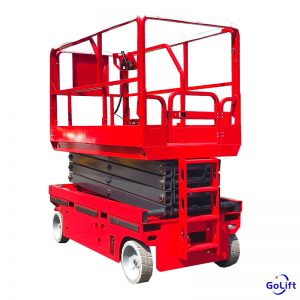

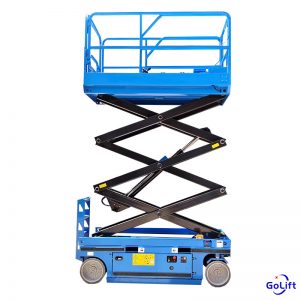

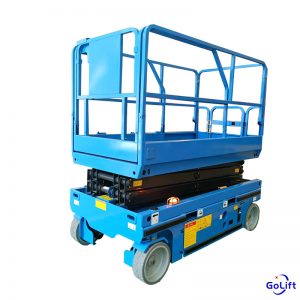

Electric Self Propelled Scissor Lift
Application: Electric self-propelled scissor lift for safe, efficient aerial work, ideal for maintenance, construction, and warehouse tasks with stable lifting and easy maneuverability.
★ Lift capacity: 230KG / 320KG/ 450KG
★ Platform height: 6m/ 8m/ 10m/ 12m/ 14m
★ Working height: 8m/ 10m/ 12m/ 14m/ 16m
★ Power source: lead acid battery, optional with lithium batteries
Hydraulic Self-Propelled Scissor Lift | Electric Aerial Work Platform for Indoor & Outdoor
Our self-propelled scissor lift platform is designed for safety, efficiency, and ease of use, making it the ideal solution for working at heights, both indoors and outdoors.
Perfect for maintenance, construction, warehouse inventory, and building cleaning, it allows operators to reach considerable heights safely and confidently. Thanks to its robust scissor mechanism, the platform offers smooth and controlled lifting while maintaining excellent stability. The spacious and protected work platform, with non-slip flooring and guardrails, ensures operator safety and prevents falls. Powered by a reliable electric motor, the self-propelled lift platform operates quietly and without emissions, making it suitable for indoor use as well. Its intuitive controls, emergency stop function, and tilt alarm ensure safe and precise operation. Its robust steel construction guarantees durability even in demanding conditions, reducing downtime and maintenance costs.
From building maintenance to event preparation, our self-propelled scissor lift platform increases productivity by eliminating the need for ladders and optimizing work at height. It’s the proven solution for contractors, facility managers, and maintenance teams worldwide.
| Model No. | GTJZ08S | GTJZ08 | GTJZ10 | GTJZ12 | GTJZ14 | GTJZ16 |
|---|---|---|---|---|---|---|
| Lift capacity | 230 kg | 450 kg | 450 kg | 320 kg | 320 kg | 230 kg |
| Max. working height | 8 m | 8 m | 10 m | 12 m | 13.8 m | 15.8 m |
| Max. platform height | 6 m | 6 m | 8 m | 10 m | 11.8 m | 13.8 m |
| Overall size (L*W*H ) mm | 1850x790x 2200 | 2430x1210x 2200 | 2430x1210x 2350 | 2430x1210x 2470 | 2430x1210x 2600 | 2850x1310x 2620 |
| Overall height (guardrails folded) mm | 1680 | 1670 | 1800 | 1930 | 2060 | 2060 |
| Platform size mm | 1680x740 | 2270x1120 | 2270x1120 | 2270x1120 | 2270x1120 | 2700x1100 |
| Extend platform Length (G) mm /load capacity kg | 900mm / 110kg | 900mm / 110kg | 900mm / 113kg | 900mm / 113kg | 900mm / 113kg | 900mm / 110kg |
| Battery V/Ah | 4×6V/200Ah | 4×6V/200Ah | 4×6V/200Ah | 4×6V/200Ah | 4×6V/200Ah | 4×6V/240Ah |
| Charger V/A | 24V /30A | 24V /30A | 24V /30A | 24V /30A | 24V /30A | 24V /30A |
| Min. turn radius mm | 1750 | 2400 | 2400 | 2400 | 2400 | 2400 |
| Motor power v/kw | 24V/3.3KW | 24V/4.5KW | 24V/4.5KW | 24V/4.5KW | 24V/4.5KW | 24V/4.5KW |
| Rising/falling speed sec | 100/80 | 100/80 | 100/80 | 100/80 | 100/80 | 100/80 |
| Drive speed folded km/h | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 |
| Drive speed elevated km/h | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Max. climbing ability % | 25 | 25 | 25 | 25 | 25 | 25 |
| Wheelbase mm | 1390 | 1870 | 1870 | 1870 | 1870 | 2280 |
| Ground clearance folded mm | 100 | 100 | 100 | 100 | 100 | 100 |
| Ground clearance elevated mm | 19 | 19 | 19 | 19 | 15 | 15 |
| Overall Net Weight kg | 1430 | 2250 | 2350 | 2550 | 2980 | 3670 |
