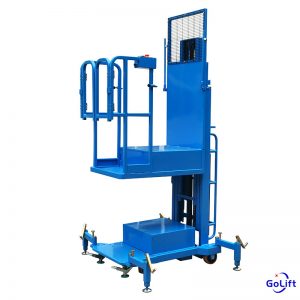

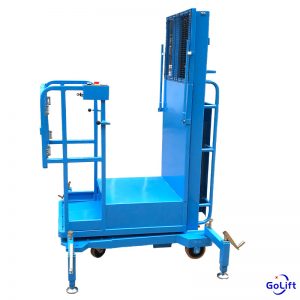

Semi Electric Order Picker
Application: Semi-electric order picker with 300kg load capacity, battery lifting & manual movement. Lifting height options: 2.7m,3.3m,4.0m,4.5m. More affordable than self-propelled lifting platforms. Widely used in supermarkets, factories and warehouses for rack goods loading and picking.
★ Lift capacity: 300KG
★ Platform height: 2.7m/ 3.3m/4m/ 4.5m
★ Power source: Lead acid battery power
This semi-electric order picker is designed for overhead stock picking & placement. Different from self-propelled aerial work platforms, this model delivers a much more cost-effective solution with lower purchase cost and simple maintenance.
Operators manually push the machine to move around the workplace, while the electric hydraulic system smoothly lifts the working platform to the required height for loading and retrieving goods from racks.
Compact overall dimensions make it ideal for narrow aisles in warehouses, supermarkets, workshops and retail storage areas. Equipped with stabilizer outriggers, it guarantees stable and safe operation during lifting work. The guardrail enclosed working platform protects operators during high-level picking tasks.
Main advantages:
✅ Economic initial investment
Battery-driven lifting, low noise & eco-friendly
Manual moving for flexible positioning
Stable outriggers for safety
Simple operation & easy maintenance
Perfect for rack loading, order picking and overhead material handling
It is widely applied in retail supermarkets, manufacturing workshops, distribution centers and small warehouses for high-level inventory management and material access.
| Model Number | SEP2-2.7 | SEP2-3.3 | SEP2-4.0 | SEP2-4.5 |
|---|---|---|---|---|
| Max. Platform Height(mm) | 2700 | 3300 | 4000 | 4500 |
| Max. Machine Height(mm) | 4020 | 4900 | 5360 | 6050 |
| Ground Clearance(mm) | 30 | 30 | 30 | 30 |
| Lifting Capacity(kg) | 200 | 200 | 200 | 200 |
| Platform Size(mm) | 600×640 | 600×640 | 600×640 | 600×640 |
| Lifting Motor(w/kw) | 12/1.6 | 12/1.6 | 12/1.6 | 12/1.6 |
| Aneroid Battery(V/Ah) | 12/135 | 12/135 | 12/135 | 12/135 |
| Charger(V/A) | 12/15 | 12/15 | 12/15 | 12/15 |
| Overall Length(mm) | 1320 | 1320 | 1320 | 1320 |
| Overall Width(mm) | 850 | 850 | 850 | 850 |
| Overall Height(mm) | 1760 | 2040 | 1830 | 2000 |
| Overall Net Weight(kg) | 270 | 320 | 380 | 420 |
