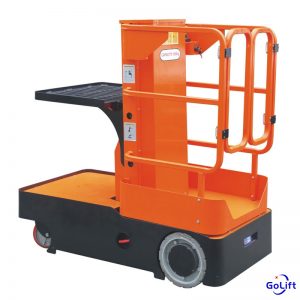

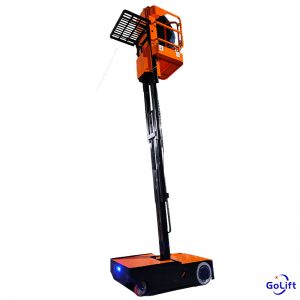

Self Propelled Stock Picker
Application: Suitable for goods picking from storage racks in the warehouse, supermarket and other tight space
★ Lift capacity: 150KG
★ Platform height: 3m/4m/ 5m
★ Power source: maintenance-free lead acid battery
The full electric self-propelled stock picker is the compact elevated work platform for warehouse high-level stock picking, inventory counting, shelf maintenance, narrow aisle warehouses, supermarkets, spare parts workshops and retail storage areas etc.
Three models FOP3 / FOP4 / FOP5 are available to meet 3m / 4m /5m platform lifting demands.
Equipped with an operator standing platform and safety guardrails, this order picker integrates electric driving, electric lifting and material picking functions. It allows the operator to stand on the platform and travel & lift freely, a separate cargo tray is designed to carry materials, separating personnel load and cargo load, replacing traditional ladders to improve safety and picking efficiency.
Functional features
Proportional controls
Drivable at full height
Automatic braking system
Emergency stop button
Onboard diagnostic system
Emergency descent system
Oil pipe explosion-proof system
All motion alarm
Horn
Hour meter
Charger protection
Interlocking door
Key Advantages
✅ Compact & Flexible
Ultra-small body dimension with only 1700mm minimum turning radius. It can easily move inside narrow warehouse aisles. Solid non-marking tires protect indoor floors from scratches.
✅ Dual-load Design
150kg rated capacity for operator, extra 90kg load on the side cargo tray. Independent loading area separates people and goods for reliable load control.
✅ Reliable All-electric Power System
24V battery system, low noise and zero emission. Stable lifting & descent speed, continuous working for long shifts. 24V lifting motor + 24V drive motors deliver smooth travel and lifting performance.
✅ Full Safety Protection
High-strength safety guardrails, emergency stop function, support feet for stability during lifting, overload protection and warning labels. All safety configurations guarantee operator safety at height.
| Model Number | FOP3 | FOP4 | FOP5 |
|---|---|---|---|
| Maxplatform Height (mm) | 3000 | 4000 | 5000 |
| Working Height (mm) | 4125 | 5125 | 6125 |
| Platform Size(For Person) (mm) | 695*720 | 695*720 | 695*720 |
| Platform Size(For Goods) (mm) | 550*740 | 550*740 | 550*740 |
| Capacity(For Person) (kg) | 150 | 150 | 150 |
| Capacity(For Goods) (kg) | 90 | 90 | 90 |
| Load Platform Travel (mm) | 480 | 480 | 480 |
| Minimum Turning Radius (mm) | 1700 | 1700 | 1700 |
| Height Of Guardrail (mm) | 1100 | 1100 | 1100 |
| Ground Clearance (mm) | 15 | 15 | 15 |
| Lifting / Descent Speed (sec) | 30/40 | 40/50 | 40/50 |
| Max Climb Capability (mm) | 5° –8° | 5° –8° | 5° –8° |
| Lifting Motor (v/kw) | 24/0.8 | 24/0.8 | 24/0.8 |
| Drive Motor (v/kw) | 24/0.5×2 | 24/0.5×2 | 24/0.5×2 |
| Travel Speed (km/h) | 0–4 | 0–4 | 0–4 |
| Lead Acid Battery (v/Ah) | 2×12/100 | 2×12/100 | 2×12/100 |
| Charger (v/A) | 24/15 | 24/15 | 24/15 |
| Front Tire Size (mm) | Φ200*50 | Φ200*50 | Φ200*50 |
| Driving wheel Size (mm) | Φ305*100 | Φ305*100 | Φ305*100 |
| Overall Length (mm) | 1480 | 1480 | 1480 |
| Overall Width (mm) | 756 | 756 | 756 |
| Overall Height (mm) | 1475 | 1805 | 1805 |
| Overall Net Weight (kg) | 840 | 870 | 990 |
