Electric Floor Cranes
Application: material/cargo/goods lifting and moving in the workshop or industrial workshop
★ Lift capacity: 200kg to 1200kg, customization available
★ Lift height: 900mm to 3500mm, customization available
★ Power source: Maintenance free lead acid battery

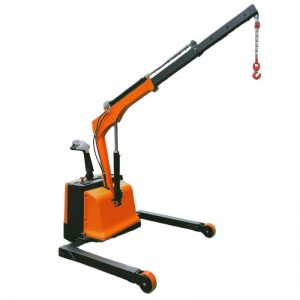

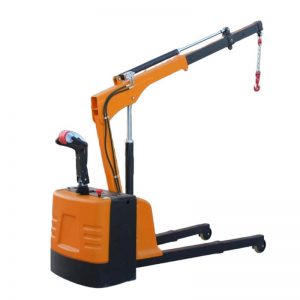

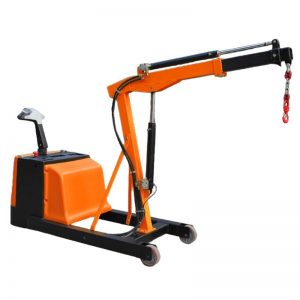

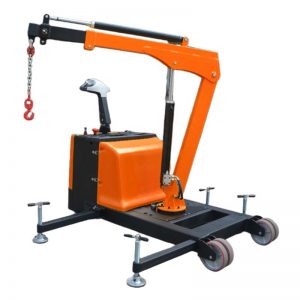

Mobile Electric Floor Crane for Industrial Material Handling
The compact jib boom floor crane is a vital lifting device widely used in factory workshops to efficiently transport heavy loads, raw materials, or finished products. Powered by electricity, it combines robust construction with advanced technology to ensure safe, precise, and high-capacity lifting operations.
Adaptable to various load capacities from 200kg to 1200kg, lift height maximum around 3.5m, and custom available.
For your reference, here are all standard models list.
Welcome to inquire us and get the electric floor crane you need.
| Model No. | WCR120L | WCR120W | WCR70 | WCR90 |
|---|---|---|---|---|
| Load Capacity KG | 1200 / 600 / 300 | 1200 / 600 / 300 | 700 / 400 / 200 | 900 / 450 /250 |
| Boom extend mm | 1280 - 1890 -2500 | 1280 - 1890 -2500 | 1220 - 1830 -2440 | 1280 - 1890 -2500 |
| Lifting scope mm | 960 - 3570 | 935 - 3540 | 1190 - 3350 | 1410 - 3180 |
| Retracted size mm | 1920x760x1600 | 1865x1490x1570 | 2595*760*1580 | 2000*1854*155 |
| Battery | 2 x 12v/ 120Ah | 2 x 12v/ 120Ah | 2 x 12v/ 120Ah | 2 x 12v/ 120Ah |
| Battery charger | 24V / 15A | 24V / 15A | 24V / 15A | 24V / 15A |
| Driving power | DC24V/700W | DC24V/700W | DC24V/900W | DC24V/1000W |
| Lifting power | DC24V/2000W | DC24V/2000W | DC24V/2000W | DC24V/2000W |
| Lifting speed | 35 mm/s | 35 mm/s | 35 mm/s | 35 mm/s |
| Climb ability loaded/unloaded | 5% / 10% | 5% / 10% | 5% / 10% | 5% / 10% |
| Drive speed loaded/unloaded | 3.5kmh / 4.5kmh | 3.5kmh / 4.5kmh | 4kmh / 4.5kmh | 4kmh / 4.5kmh |
| Feature | support legs length adjustable 600mm | support legs width adjustable 380mm | counter balance type, boom in front | counter balance type, boom rotary 120° |
| Braking type | electromagnetic disc brake | electromagnetic disc brake | electromagnetic disc brake | electromagnetic disc brake |
| Net weight KG | 500 | 480 | 770 | 900 |
