Spider Cranes
Application: industrial & construction building material/cargo/goods lifting and moving indoor and outdoor use
★ Lift capacity: 1.5ton to 16ton
★ Lift height: 5m to 25m
★ Power source: Dual power of AC electric and Diesel engine, optional DC battery power

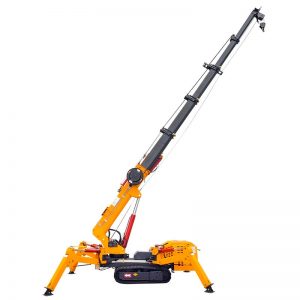

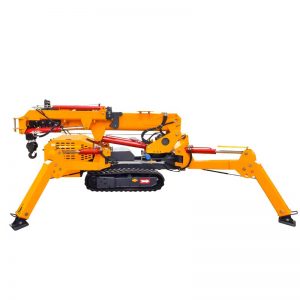

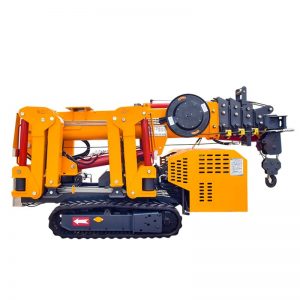

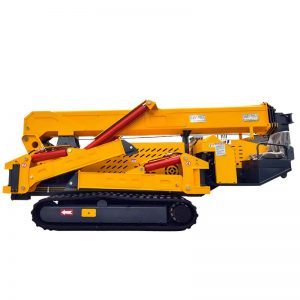

Spider crane also known as a mini crawler crane, is a compact, lightweight lifting machine designed for confined or hard-to-reach spaces. With its multi-leg outrigger system (resembling a spider’s legs), it ensures stability on uneven terrain. These cranes are highly maneuverable, hybrid-powered with AC electric and diesel engine, making them ideal for indoor construction, rooftop work, or urban projects. Their modular design allows easy transport and setup, offering precise load handling with capacities typically ranging from 1 ton to 16 tons, perfect for delicate operations where traditional cranes cannot access.
Welcome to inquire us and get the spider crane you need.
| Model No. | TSC1.5 | TSC3.0 | TSC5.0 | TSC8.0 | TSC10.0 | TSC12.0 | TSC4.0 | TSC16.0 | |
|---|---|---|---|---|---|---|---|---|---|
| Max.Load capacity | 1.5ton | 3ton | 5ton | 8ton | 10ton | 12ton | 14ton | 16ton | |
| Max. work radius | 6m | 10.5m | 15m | 18m | 18m | 19m | 23m | 23m | |
| Max. lift height | 6.5m | 10.8m | 17m | 21m | 21m | 21m | 25m | 25m | |
| Hook Lifting Speed (4 ropes) | 8m/min | 8m/min | 12m/min | 12m/min | 11m/min | 10m/min | 10m/min | 10m/min | |
| Steel Rope specs | Φ8mm×45m | Φ8mm×45m | Φ12mm×80m | Φ12mm×80m | Φ12mm×100m | Φ12mm×120m | Φ12mm×120m | Φ12mm×140m | |
| Boom Form | 2m x 4 | 2.4m x6 | 4m x 5 | 5m x 5 | 5m x 5 | 5m x 5 | 6m x 5 | 6m x 5 | |
| Boom Length /Time | 6.5m/20s | 3.1m-9.2m/ 20s | 4.5m-17m/ 54s | 5.5m-21m/ 54s | 12.3m/ 58s | 12.3m/60s | 12.3m/40s | 12.3m/40sec | |
| Lifting angle/ Speed | 0-78°/13s | 0-78°/13s | 0-78°/13s | 0-78°/13s | 0-78°/15s | 0-78°/17s | 0-78°/17s | 0-78°/17s | |
| Rotation degree | 360° | 360° | 360° | 360° | 360° | 360° | 360° | 360° | |
| Rotation speed | 60s | 60s | 38s | 38s | 40s | 42s | 42s | 42s | |
| Driven mode | Hydraulic motor drive | Hydraulic motor drive | Hydraulic motor drive | Hydraulic motor drive | Hydraulic motor drive | Hydraulic motor drive | Hydraulic motor drive | Hydraulic motor drive | |
| Max. Drive Speed | 2.5km/h | 2.5km/h | 2.5km/h | 2.5km/h | 2.5km/h | 2.5km/h | 2.5km/h | 2.5km/h | |
| Gradeability | 36% | 36% | 36% | 36% | 36% | 36% | 36% | 36% | |
| Power supply | AC+Gasoline | AC+Diesel | AC+Diesel | AC+Diesel | AC+Diesel | AC+Diesel | AC+Diesel | AC+Diesel | |
| Engine brand | Honda | Changchai | Yunnei | Yunnei | Yunnei | Yunnei | Yuchai | Yuchai | |
| Tank capacity | Gasoline4L | Diesel 8L | Diesel 45L | Diesel 45L | Diesel 45L | Diesel 45L | Diesel 45L | Diesel 45L | |
| Overall Size (L*W*H) | 2.5*0.6*1.5m | 3.5*0.8*1.85m | 4.7*1.5*2.25m | 6.15*1.6*2.25m | 6.15*1.8*2.3m | 6.15*1.86*2.48m | 6.6*2*2.48m | 6.6*2*2.48m | |
| Net Weight | 1300kg | 2700kg | 6100kg | 8700kg | 10500kg | 12500kg | 14500kg | 16500kg | |
| Package and Loading | plywood box, LCL shipment | plywood box, LCL shipment | 20ft container | 20ft container | 40ft container | 40ft container | 40ft container | 40ft container |
