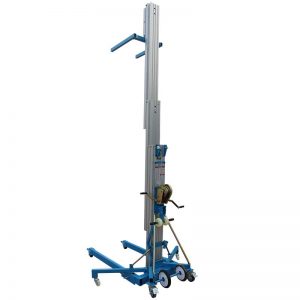

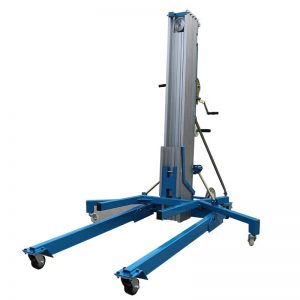

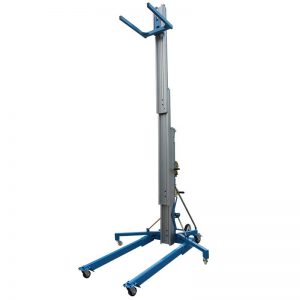

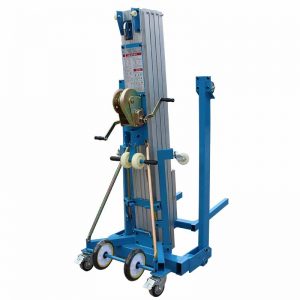

Vertical Mast Manual Material Lift
Application: industrial & constructional pallet material/cargo/goods lifting up and down
★ Lift capacity: 200kg /300kg/350kg/400kg
★ Lift height: 3.5m /5m/ 6.5m/7.9m
★ Power source: Standard manually operating, optional AC electric power for lifting up/down
The manually operated material lift is made of the light-weight aluminum alloy multiple masts & base, pallet fork, moving wheels, the manual hand winch, compact and simple structure.
It is ideal for wide loads as well as narrow doorways, and can be loaded easily onto the bed of a pickup van or truck.
Welcome to inquire us and get the material lift you need.
For your reference, here are all standard models list.
| Model No. | GTWY-3.5 | GTWY-5 | GTWY-6.5 | GTWY-7.9 | |
|---|---|---|---|---|---|
| Max. lift height mm | 3500 | 5000 | 6500 | 7900 | |
| Max. Lift capacity kg | 400 | 350 | 300 | 250 | |
| Platform fork size mm | 720X510 | 720X510 | 720X510 | 720X510 | |
| Ground clearance mm | 40 | 4040 | 40 | 40 | |
| Working Length mm | 2030 | 2030 | 2030 | 2030 | |
| Working Width mm | 1820 | 1820 | 1820 | 1820 | |
| Folded/storage size mm | 740X840X2050 | 740X840X2050 | 740X840X2050 | 740X840X2050 | |
| Net Weight kg | 160 | 180 | 200 | 220 | |
| Operated mode | Manually | Manually | Manually | Manually | |
| Optional | AC motor for lifting | AC motor for lifting | AC motor for lifting | AC motor for lifting |
