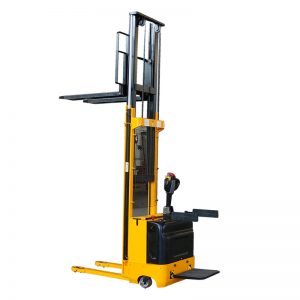

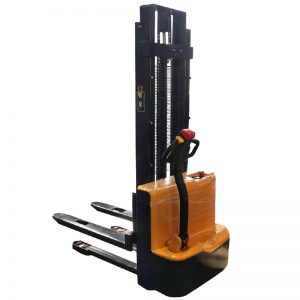

Full Electric Pallet Stacker
Application: material handling machine for modern warehouses, factories and logistics centers
★ Lift capacity: 1000kg /1500kg/2000kg
★ Lift height: 1.6m /2m/ 2.5m/3m/3.5m/4m/4.5m/5m
★ Power source: Battery power for both lifting and moving
Our fully electric stacker is a high-efficiency, eco-friendly material handling machine designed for modern warehouses, factories and logistics centers. Featuring full electric driving and lifting, it delivers fully automated operation to cut labor costs and boost stacking productivity.
Built with a sturdy mast and reliable battery system, this electric pallet stacker ensures stable loading, smooth lifting and long service time. Its compact structure and small turning radius enable flexible operation in narrow aisles. Equipped with ergonomic handles and multiple safety protections, it guarantees safe and comfortable daily work.
Low noise, zero emission and easy maintenance, it is the ideal warehouse equipment for heavy-duty pallet stacking, loading and unloading tasks.
| Model No. | Rated Capacity kg | Lifting height m | Overall dimension mm | Net Weight kg |
|---|---|---|---|---|
| FSEM10-25 | 1000 | 2.5 | 1745*820*1750 | 535 |
| FSEM10-30 | 1000 | 3 | 1475*820*2000 | 550 |
| FSEM15-25 | 1500 | 2.5 | 2140*830*1840 | 970 |
| FSEM15-30 | 1500 | 3 | 2140*830*2090 | 1070 |
| FSEM15-35 | 1500 | 3.5 | 2200*890*1800 | 1300 |
| FSEM15-40 | 1500 | 4 | 2200*890*1920 | 1340 |
| FSEM15-45 | 1500 | 4.5 | 2200*890*2085 | 1370 |
| FSEM15-50 | 1500 | 5 | 2200*890*2250 | 1400 |
| FSEM20-16 | 2000 | 1.6 | 2100*830*2160 | 840 |
| FSEM20-20 | 2000 | 2 | 2140*830*1590 | 890 |
