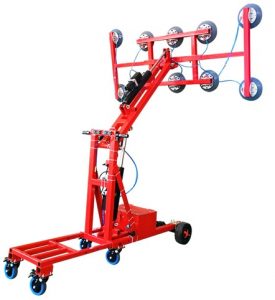

Heavy Duty Electric Vacuum Suction Cups Trolley
Application: Ideal for moving and lifting glass, steel plates, wooden panels, etc. various material panels
★ Lift capacity: 400kg/600kg/800kg/1000kg
★ Control Mode: press buttons on the control panel
★ Power Source: lead acid battery
This electric vacuum suction cup trolley is a cost-effective, easy-to-use solution for lifting, moving, and installing glass sheets, steel plates, wooden panels, and other smooth flat materials. One person can operate it effortlessly, significantly improving work efficiency while reducing manual handling risks.
Equipped with heavy-duty rubber suction cups and a stable wheeled base, the lifter delivers strong, secure adsorption without scratching or damaging the material surface. Compact, lightweight, and low-maintenance, it is ideal for construction sites, workshop production, door/window installation, and small-scale handling projects. As a budget-friendly, practical tool, it is perfect for contractors, factories, and wholesale buyers seeking reliable material handling equipment.
Performance:
1. Pad frame rotating 360 degree manually
2. Pad frame tilting (left/right sides) 180 degree manually
3. Pad frame flipping (horizontal/vertical) 180 degree electrically
| Model Type | SC-T400 | SC-T600 | SC-T800 | SC-T1000 |
|---|---|---|---|---|
| Load Capacity (kg) | 400 | 600 | 800 | 1000 |
| Rubber suction Cups diameter mm | φ250 x 4pcs | φ250 x 6pcs | φ250 x 8pcs | φ250 x 10pcs |
| Battery power (v) | 12 | 48 | 48 | 48 |
| Universal Wheel (pcs) | 4 | 4 | 6 | 6 |
| Dimension(L*W*H) (mm) | 2350*800*800 | 1300*1300*700 | 2000*1500*700 | 2200*1800*800 |
| Net Weight (kg) | 250 | 330 | 350 | 500 |
